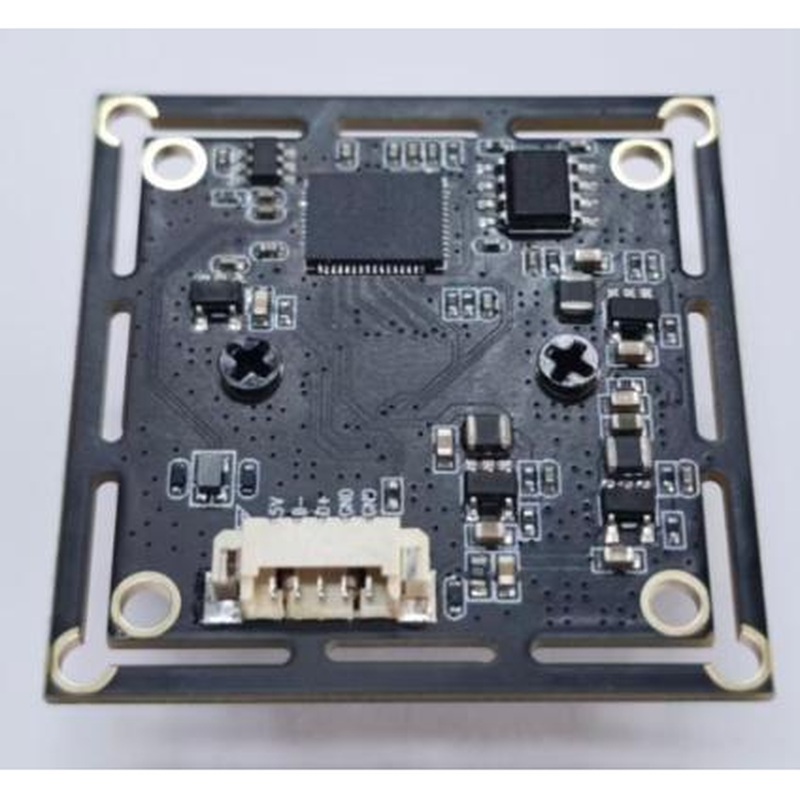

1080P 120 fps USB Camera Module, 153° Wide Angle

Description

Huake Vision 1080P 120 fps USB Camera Module, 153° Wide Angle. Factory-direct USB camera module for OEM/ODM integration. Applications: Machine vision and low-altitude drone monitoring. Solution: 2MP (1920×1080) over USB; Frame rate: 120 fps at 1920×1080; Sensor: 1/2.6 inch; 3.0μm × 3.0μm pixels; Operating systems: Windows / Android / Linux / iOS; Dynamic range: 91.5 dB; Maximum SNR: 39 dB; Current: ≤150 mA; Color filter: RGB; Video format: YUV / MJPG; Interface: USB 2.0, UVC 1.1; Field of view: D=153° H=134° V=88° (options available); Optics: F2.4 ±5%; EFL 2.15 mm ±5%; distortion ≤13.8%; Power: DC 5V ±3%; operating temperature 0–60°C; Dimensions: 38 × 38 × 17 mm or 32 × 32 × 17 mm; Cable: 1.25 m USB cable with ferrite bead, optional. Optional optics and customization are subject to confirmation. Contact Zhou Hui / Taizhou Huihuan International Trading Co., Ltd. Tel/WhatsApp +86 186 2740 7019; Telegram @sardenesy; WeChat 18627407019; Zangi 18-7793-4838; Email [email protected] / [email protected]; LinkedIn linkedin.com/in/hui-zhou-926371438.

Specifications

Applications

Machine vision and low-altitude drone monitoring.

Product Advantages

USB UVC integration, multiple operating systems, OEM/ODM options; detailed optical and electrical specifications supplied in the catalog.

Custom Services

Optical field-of-view options, cable options and OEM/ODM camera-module integration, subject to technical confirmation.
