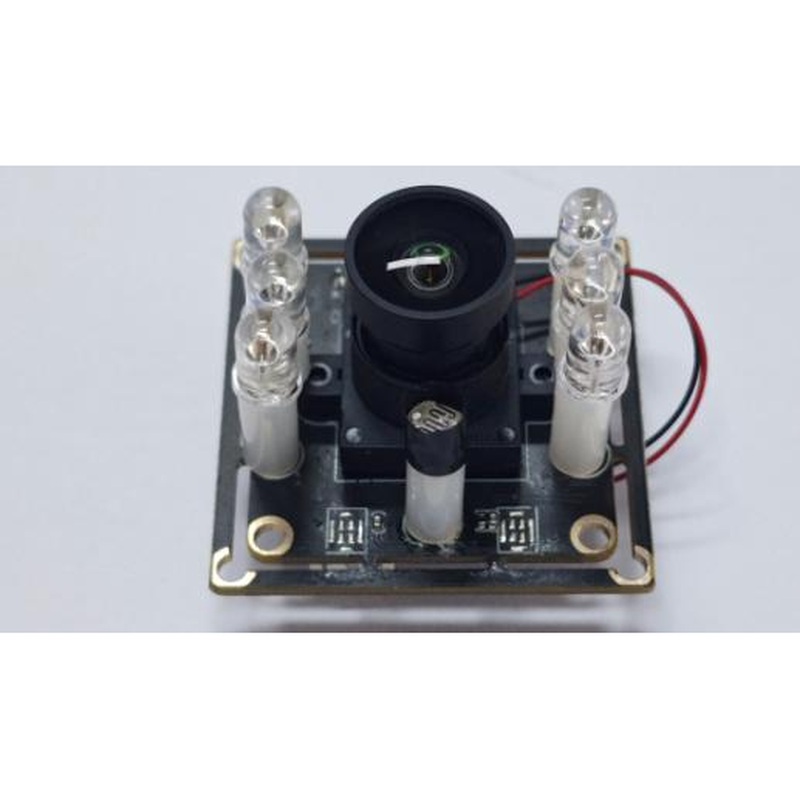

5MP 2880×1624 USB Camera Module, 150° FOV, Camera Modules from Shenzhen, China - Huake Shitong Technology (Shenzhen) Co., Ltd.

5MP 2880×1624 USB Camera Module, 150° FOV, Camera Modules from Shenzhen, China - Huake Shitong Technology (Shenzhen) Co., Ltd. - view 1

Product Documents

Huake Camera Modules Product Catalog

516.5 KB

5MP 2880×1624 USB Camera Module, 150° FOV

Camera Modules

0 views

0 inquiries

10/29/2026

Description

Huake Vision 5MP 2880×1624 USB Camera Module, 150° FOV. Factory-direct USB camera module for OEM/ODM integration. Applications: AI robotics and indoor monitoring. Solution: 5MP (2880×1624) over USB; Resolutions: 2880×1624 / 2560×1444 / 1920×1080 / 1280×720 / 640×480; Frame rate: 30 fps; Sensor: 1/2.65 inch; 2.0μm × 2.0μm pixels; Operating systems: Windows / Android / Linux / iOS; Maximum SNR: 39 dB; Current: ≤180 mA; Color filter: RGB / IR; Video format: YUV / MJPG; Interface: USB 2.0, UVC 1.1; Field of view: D=150° H=116° V=84° (options available); Optics: F1.6 ±5%; EFL 3.0 mm ±5%; distortion ≤20%; Power: DC 5V ±3%; operating temperature 0–60°C; Dimensions: 38 × 38 × 25 mm or 32 × 32 × 25 mm; Cable: 1.5 m USB cable with ferrite bead, optional. Optional optics and customization are subject to confirmation. Contact Zhou Hui / Taizhou Huihuan International Trading Co., Ltd. Tel/WhatsApp +86 186 2740 7019; Telegram @sardenesy; WeChat 18627407019; Zangi 18-7793-4838; Email [email protected] / [email protected]; LinkedIn linkedin.com/in/hui-zhou-926371438.

Specifications

Cable1.5 m USB cable with ferrite bead, optional

PowerDC 5V ±3%; operating temperature 0–60°C

OpticsF1.6 ±5%; EFL 3.0 mm ±5%; distortion ≤20%

Sensor1/2.65 inch; 2.0μm × 2.0μm pixels

Current≤180 mA

Solution5MP (2880×1624) over USB

InterfaceUSB 2.0, UVC 1.1

Dimensions38 × 38 × 25 mm or 32 × 32 × 25 mm

Frame rate30 fps

Maximum SNR39 dB

Resolutions2880×1624 / 2560×1444 / 1920×1080 / 1280×720 / 640×480

Color filterRGB / IR

Video formatYUV / MJPG

Field of viewD=150° H=116° V=84° (options available)

Operating systemsWindows / Android / Linux / iOS

Applications

AI robotics and indoor monitoring.

Product Advantages

USB UVC integration, multiple operating systems, OEM/ODM options; detailed optical and electrical specifications supplied in the catalog.

Custom Services

Optical field-of-view options, cable options and OEM/ODM camera-module integration, subject to technical confirmation.

Min Order:1
